DXR+
DXR+

The RaySafe DXR+, is a direct X-ray ruler for alignment of the light and radiation field, and beam centering in R/F and mammography applications. The RaySafe DXR+ is extremely easy to use as it is powered on by simply exposing the meter.

Unit FeaturesCaractéristiques de l'unité
Fully automatic
Auto reset and auto power off.
Additional Features

Provides accurate and instantaneous results where adjustments are needed

Ideal for radiography and mammography

6 - 8 years battery life

Certifications

Electromagnetic compatibility (EMC): EN 61326-1:2013; EN 61000-6-1:2007; EN 61000-6-1:2007; EN 61000-6-3:2007+A1:2011

Environmental: EN 50581:2012

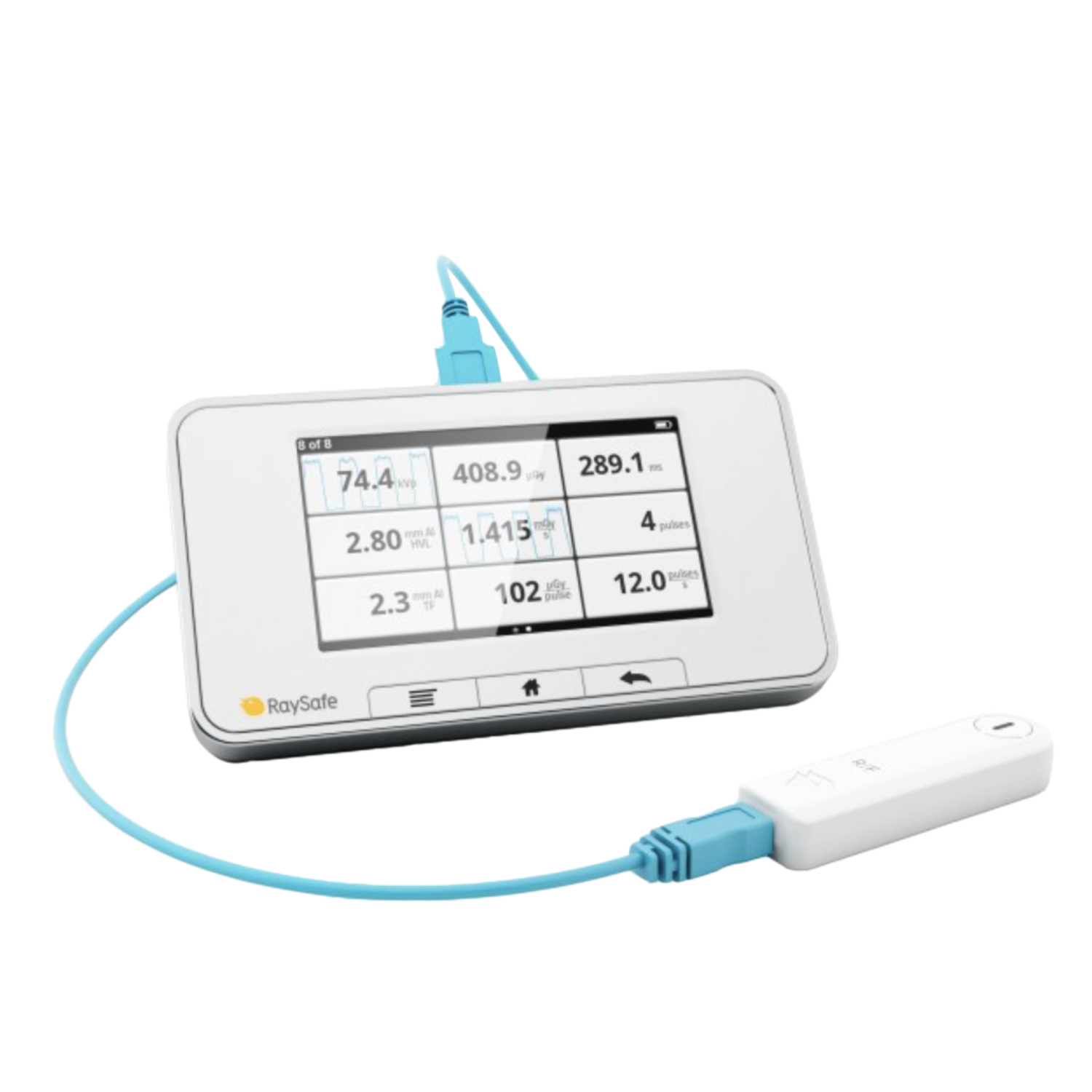

X2
X2

An X-ray test device that provides accurate measurements with the ultimate user-friendliness Less effort. More insight.

Dimensions: 14 x 22 x 79 mm (0.5 x 0.9 x 3.1 in); base unit 34 x 85 x 154 mm (1.3 x 3.3 x 6.1 in)
Weight: 42 g (1.5 oz); base unit 521 g (18.4 oz)

Unit FeaturesCaractéristiques de l'unité
Touch screen interface
Easy navigation through Menu, Home and Back keys
Additional Features

Comes with spacious heavy duty storm cases and customized aluminium cases

Built-in, self-test ensures accurate measurements every time.

Specifications

Temperature Requirements: 15°C to 35°C (59°F to +95°F) when operating; -25°C to +70°C (-13°F to +158°F) when in storage.

Display: 4.3” LCD with capacitive touch

Storage of Results: Test results stored for later viewing, printing or transfer to PC. Typical practical capacity: 100 tests

Communication:
USB device upstream port: Mini-B connector for control by a computer
USB host controller port: Type A, 5 V output, 0.5 A max load. Connector for keyboard, barcode reader, and printer
Wireless: IEEE 82.15.4 for control by a computer

Power: Rechargeable Lithium-ion battery

Battery life: ~ 10 hours intensive usage

Software: X2 View for data handling and analysis. Also exports data to Microsoft Excel

Safety standards: IEC 61010-1

PTB Certifications: DE-17-M-PTB-0053

Electromagnetic compatibility (EMC): IEC 61326-1

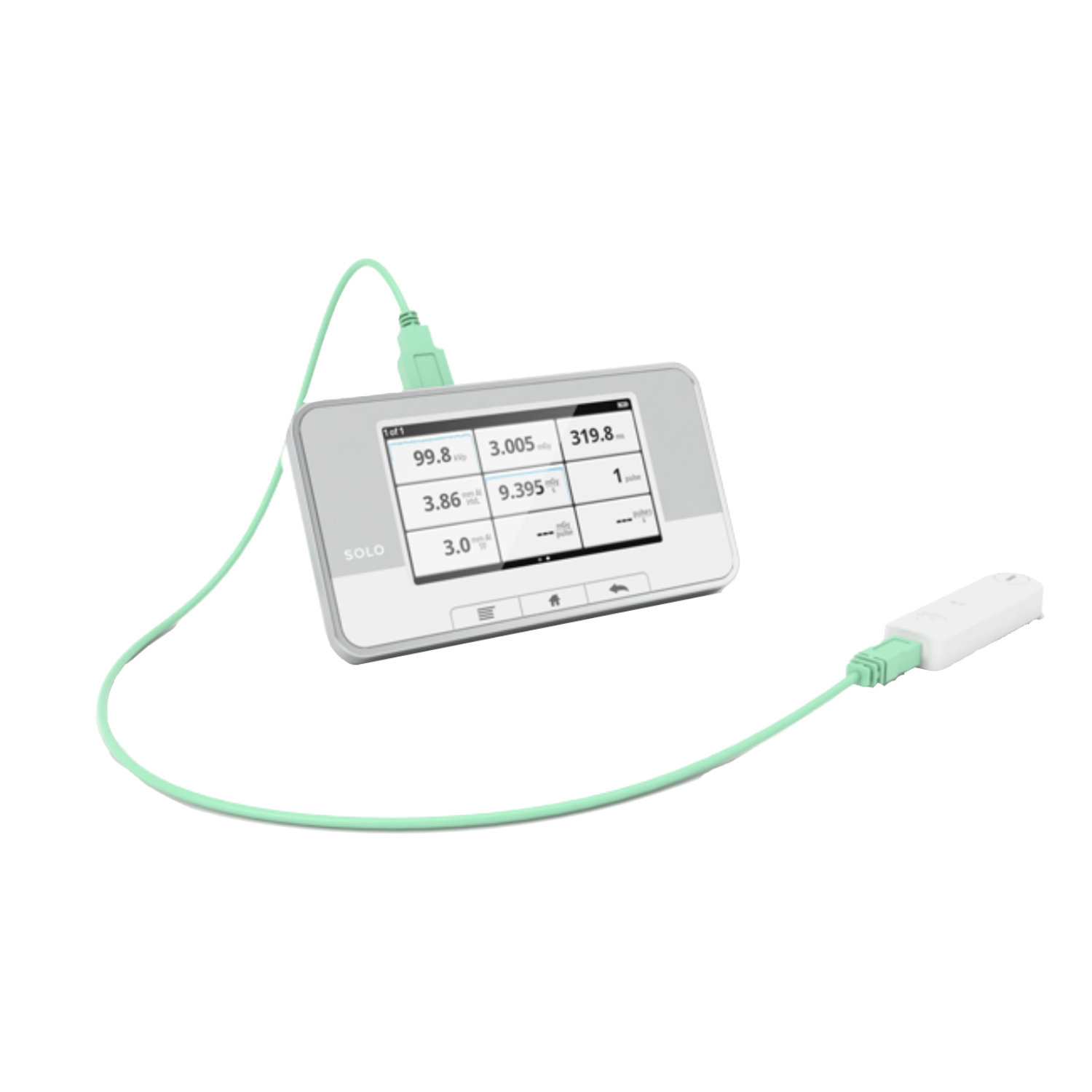

X2 SOLO
X2 SOLO

Sensors ready for measurements without special settings or modes, meeting all your quality assurance or service measurement needs, within your X-ray modalities. The RaySafe X2 Solo is based on the same technology as RaySafe X2, highly esteemed for its user-friendliness and performance, but instead of multi-modality capability, each X2 Solo model meets specific needs. It consists of a sensor and a Base Unit for read-out of the measured data.

Dimensions: 14 x 22 x 79 mm (0.5 x 0.9 x 3.1 in); base unit 34 x 85 x 154 mm (1.3 x 3.3 x 6.1 in)
Weight: 42 g (1.5 oz); base unit 521 g (18.4 oz)

Unit FeaturesCaractéristiques de l'unité
Large touch screen interface
Easy navigation through Menu, Home and Back keys
Additional Features

Comes with spacious heavy duty storm cases and customized aluminum cases

Built-in, self-test ensures accurate measurements every time.

Specifications

Temperature Requirements: 15°C to 35°C (59°F to +95°F) when operating; -25°C to +70°C (-13°F to +158°F) when in storage.

Weight: 42 g (1.5 oz); base unit 521 g (18.4 oz)

Product dimensions: 14 x 22 x 79 mm (0.5 x 0.9 x 3.1 in); base unit 34 x 85 x 154 mm (1.3 x 3.3 x 6.1 in)

Display: 4.3” LCD with capacitive touch

Storage of Results: Test results stored for later viewing, printing or transfer to PC. Typical practical capacity: 100 tests

Communication:
USB device upstream port: Mini-B connector for control by a computer
USB host controller port: Type A, 5 V output, 0.5 A max load. Connector for keyboard, barcode reader, and printer
Wireless: IEEE 82.15.4 for control by a computer

Power: Rechargeable Lithium-ion battery

Battery life: ~ 10 hours intensive usage

Software: X2 View for data handling and analysis. Also exports data to Microsoft Excel

Safety standards: IEC 61010-1

PTB Certifications: DE-17-M-PTB-0053

Electromagnetic compatibility (EMC): IEC 61326-1

RaySafe ThinX
RaySafe ThinX

An easy tool for fast results, the RaySafe ThinX has been optimized to meet the need for a basic multi-parameter instrument for simultaneous measurement of dose, dose rate, kVp, HVL, exposure time and pulses.

The main advantage of the RaySafe ThinX is that it provides a fully automatic user interface. There are no keys on the RaySafe ThinX, no setup. no settings, and no range selection. It is all automatic - just position and expose. Utilizing Auto ON/OFF, the RaySafe ThinX turns itself on when radiation is detected!

Dimensions (LxWxH): 108 x 45 x 13 mm (4.3 x 1.8 x 0.5 in)
Weight: <70 g (2.5 oz)

Unit FeaturesCaractéristiques de l'unité
Compact design, packed with world-leading, state-of-the-art technology.
All parameters are conveniently displayed on the large LCD touch screen.
Additional Features

Easy navigation through Menu, Home and Back keys

Comes with spacious heavy duty storm cases and customized aluminum cases

Built-in, self-test ensures accurate measurements every time.

Battery life of more than 1 year - no maintenance needed.

Meter uses RaySafe’s exclusive Active Compensation to apply corrections for variations in beam filtration to both kVp and dose measurements.

Specifications

Exposure: once

Power: ON - auto, radiation triggered; OFF - automatic after 2.5min of inactivity

Read out display: 128 x 64 pixel LCD

Battery life: 2 years of typical use

Electromagnetic compatibility (EMC): EN 61000-1:2007 & EN 61000-3:2007

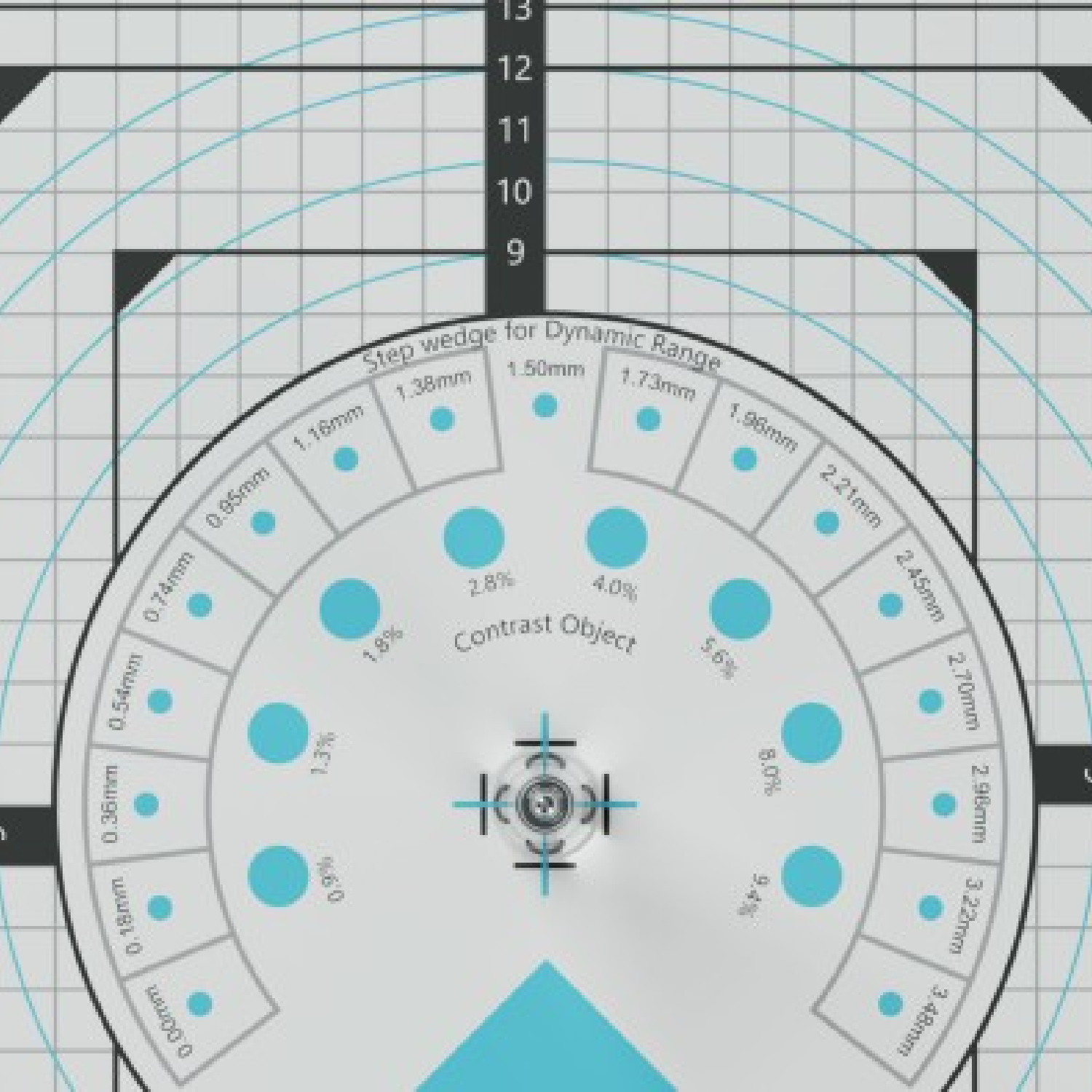

Pro-Fluoro 150 Phantom
Pro-Fluoro 150 Phantom

The RaySafe Pro-Fluoro 150 Phantom is made for acceptance and constancy testing of digital and analog radiography and fluoroscopy equipment. It is suitable for routine quality checks on over-couch tubes, under-couch tubes and C-arms.

The supported tests include:
Collimation and beam alignment
Spatial and contrast resolution
Homogeneity
Dynamic range
Beam perpendicularity

Dimensions: 300 x 300 x 18.5 mm (12 x 12 x 0.73 in.)

Unit FeaturesCaractéristiques de l'unité
Multi-purpose tool means less to learn, carry, and handle
Comes in a rugged Pelicase
Additional Features

Fluoroscopy stand for easy positioning of the phantom on a table or on a chest wall

Markings to determine the size and position of the effective radiation field

Specifications

1.5 mm thick copper plate with mesh pattern embedded in PMMA

17-step copper wedge (thickness 0 to 3.48 mm) with additional low contrast details, Ø 4 mm (0.16 in.)

Eight detail contrast elements, Ø 10 mm (0.4 in.)

Pattern for line pair resolution evaluation (from 0.6 to 5.0 line pairs/mm)

Print on both sides, indicating tube side and detector side

Filter set with 0.5 mm Cu, 1 mm Cu and 25 mm Al

Complies with DIN 6868-150 and DIN 6868-4 standards

Pro-Digi Radiography Phantom
Pro-Digi Radiography Phantom

The RaySafe Pro-Digi Radiography Phantom is a multi-functional phantom designed for acceptance and constancy tests of digital and analog radiography and fluoroscopy equipment. It is used for analyzing beam alignment, dynamic range, contrast resolution, spatial resolution, and homogeneity, and also reduces the amount of exposure and time spent while performing the required tests.

The RaySafe Pro-Fluoro is suitable for routine quality checks on over-couch tubes, under-couch tubes and C-arms.

The supported tests include:
Collimation and beam alignment
Spatial and contrast resolution
Homogeneity
Dynamic range
Beam perpendicularity

Dimensions: 300 x 300 x 12 mm (12 x 12 x 0.47 in.)

Unit FeaturesCaractéristiques de l'unité
Optimized for radiography acceptance and constancy tests.
Includes holder for chest wall mounting
Additional Features

Comes in a robust case with room for all parts

Free area for signal calibration and dose measurements

Markings to determine the size and position of the effective radiation field

Marks for correct orientation

Specifications

1 mm (0.039 in.) thick copper plate embedded in PMMA

17-step copper wedge (thickness 0 to 3.48 mm) with additional low contrast details, Ø 4 mm (0.16 in.)

7-step copper wedge

6 low contrast elements

Pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm)

Cone for perpendicular X-Ray beam control in the range of 0-1.5°

25 mm (0.98 in.) aluminium filter - patient equivalent

Complies with DIN 6868-58 and DIN 6868-13 standards.

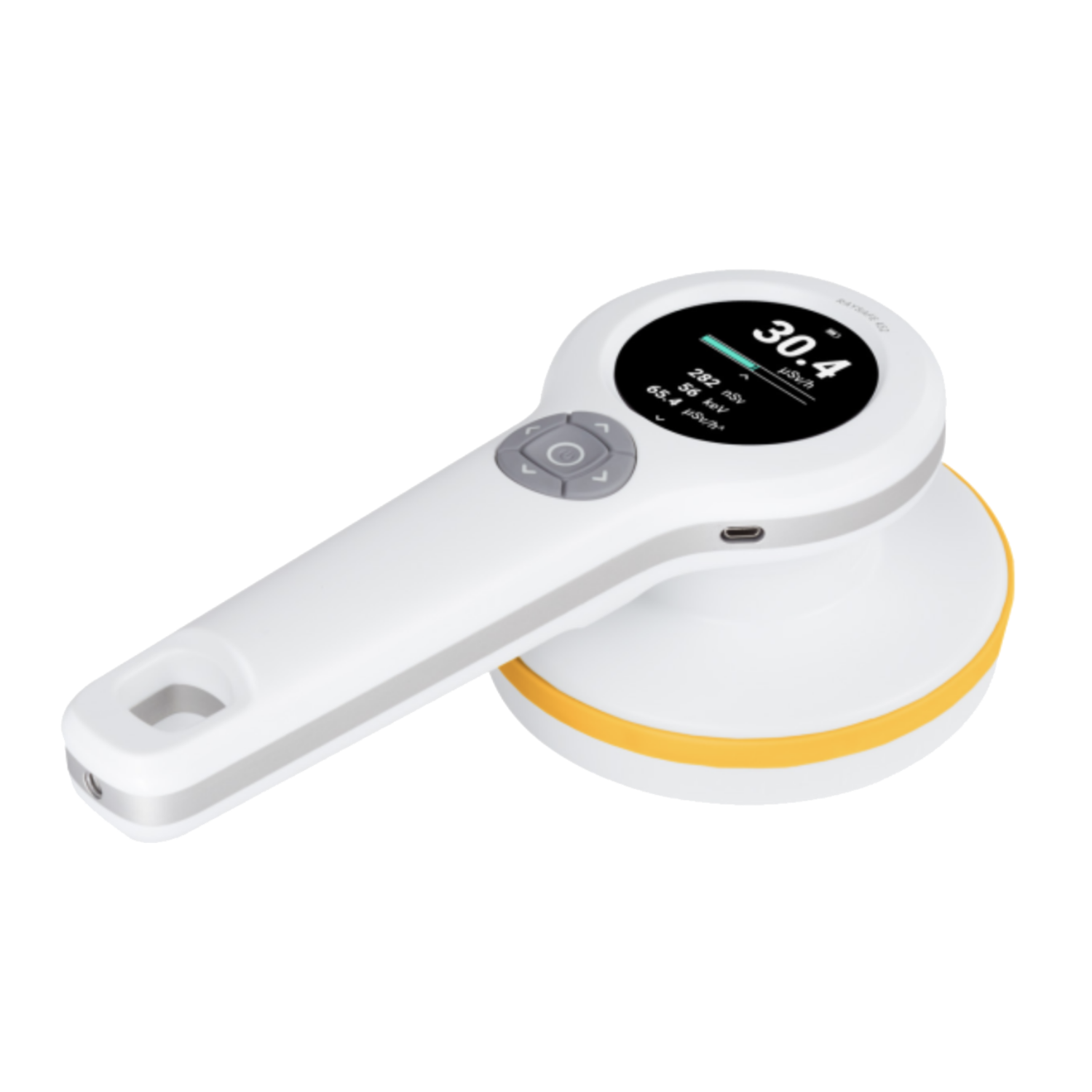

452
452

Used for radiation measurements, and is compliant with IEC 60846-1. It has high sensitivity combined with a wide and flat energy response making it suitable for a broad range of medical and industrial radiation applications.

The RaySafe 452 Survey Meter is a cost-efficient, portable device used for radiation measurements, and is compliant with IEC 60846-1. It has high sensitivity combined with a wide and flat energy response making it suitable for a broad range of medical and industrial radiation applications.

RaySafe 452. Just turn on the instrument and within a few seconds, you are ready to measure.

One device for every situation means less to carry, learn and handle. That equals less expense, more efficiency and time savings.

The most versatile version that ca be used for air kerma and ambient dose equivalent measurements as well as a contamination monitor. Measures in Sv, rem, R, Gy, rad, cps, and cpm.

Dimensions: 300 x 300 x 18.5 mm (12 x 12 x 0.73 in.)
Weight 0.8 kg (1.7 lbs)

Unit FeaturesCaractéristiques de l'unité
Does not require corrections, manual settings or setup of any kind.
Broad range of applications: ability to measure alpha, beta, gamma, and X-ray radiation
Additional Features

Fast response time and automatic data storage

RaySafe View software allows for Data analysis and reporting, and also connects to Microsoft Excel.

Easy handling: large intuitive interface, integrated handle and navigation buttons

Built for indoor and outdoor usage: durable design, wide temperature range, and IP64 classification (dust-proof and water resistant)

Specifications

Temperature Requirements: -20 – 50 °C (-4 – 122 °F); --30 – 0 °C (-22 – 158 °F) when in storage.
Humidity: < 90 % relative humidity, non-condensing

Storage: 4000 stored measurements and 10 days of dose rate log with 1 s resolution

Display: 250 x 127 x 83 mm (9.8 x 5.0 x 3.3 inches)

Battery Power: Built-in rechargeable lithium-ion, 2550 mAh

Battery life: up to 100 h

Safety: IEC 61010-1: Overvoltage category II, Pollution Degree 2

Electromagnetic Environment: IEC 61326-1: Basic

Emissions Classification: IEC CISPR 11: Group 1, Class A.

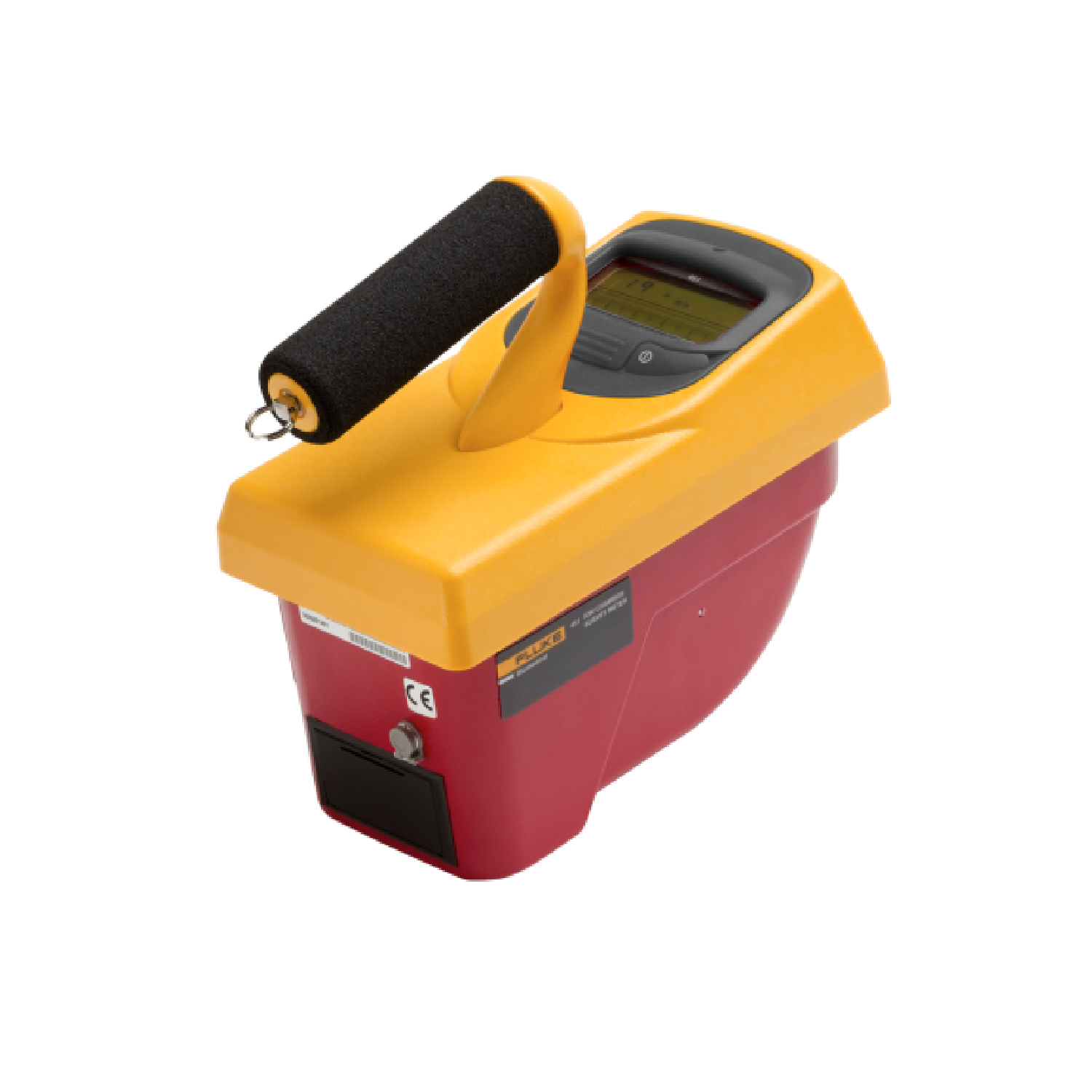

451P
451P

Ensure radiation safety using our lightweight 451P ionization chamber survey meter.

Originally designed to measure leakage and scatter around diagnostic X-ray and radiation therapy suites, the 451P’s radiation measurement surveying capabilities make it well-suited for a wide range of end users, including X-ray manufacturers, government agencies, state inspectors, biomedical technicians, and maintenance technicians for airport baggage scanners.

Dimensions (WxDxH): 4 x 8 x 6 in (10 x 20 x 15 cm)
Weight: 2.4 lb (1.07 kg)

Unit FeaturesCaractéristiques de l'unité
High sensitivity μR measurements of rate and dose simultaneously, with the capability to record peak dose rate
Ergonomic, anti-fatigue handle with replaceable grip, wrist strap and tripod mount
Additional Features

Programmable flashing LCD display and audible alarm

Easily-accessible battery door (operated by one or two 9-volt alkaline batteries) on the outside of the bottom case

RS-232 communications interface with optional Windows based Excel add-in for data logging

Available with ambient dose equivalent energy response (SI units)

CE tested. Meets applicable standards

Specifications

Temperature range: -4º to 122º F (-20° to 50° C).
Humidity: 0 to 100%

Battery Power: Two 9 V alkaline

Battery life: 200 hours operation

Safety: EN 61010-1: 2010

Electromagnetic Environment: EN 61326-1: 2013 and EN 61326-2-2: 2013

451B
451B

Get fast response time to radiation with the 451B's ionization chamber detector.

Dimensions (WxDxH): 4 x 8 x 6 in (10 x 20 x 15 cm)
Weight: 2.4 lb (1.07 kg)

Unit FeaturesCaractéristiques de l'unité
Site-surveying capabilities make it well-suited for a wide range of end users
Ionization chamber detector allows for a fast response time to radiation from leakage, scatter beams and pinholes.
Additional Features

Measurement of rate and dose simultaneously, with the capability to record peak rate

Beta slide for beta detection

Auto-ranging and auto-zeroing

RS-232 communications interface with optional Windows-based Excel add-in for data logging

Ergonomic, anti-fatigue handle with replaceable grip, wrist strap and tripod mount

Programmable flashing LCD display and audible alarm

Available with dose equivalent energy response (SI units)

CE tested. Meets applicable standards

Specifications

Temperature range: -4º to 158º F (-20° to 70°C).
Humidity: 0 to 100%

Battery Power: Two 9 V alkaline

Battery life: 200 hours operation

Safety: EN 61010-1: 2010

Electromagnetic Environment: EN 61326-1: 2013 and EN 61326-2-2: 2013
