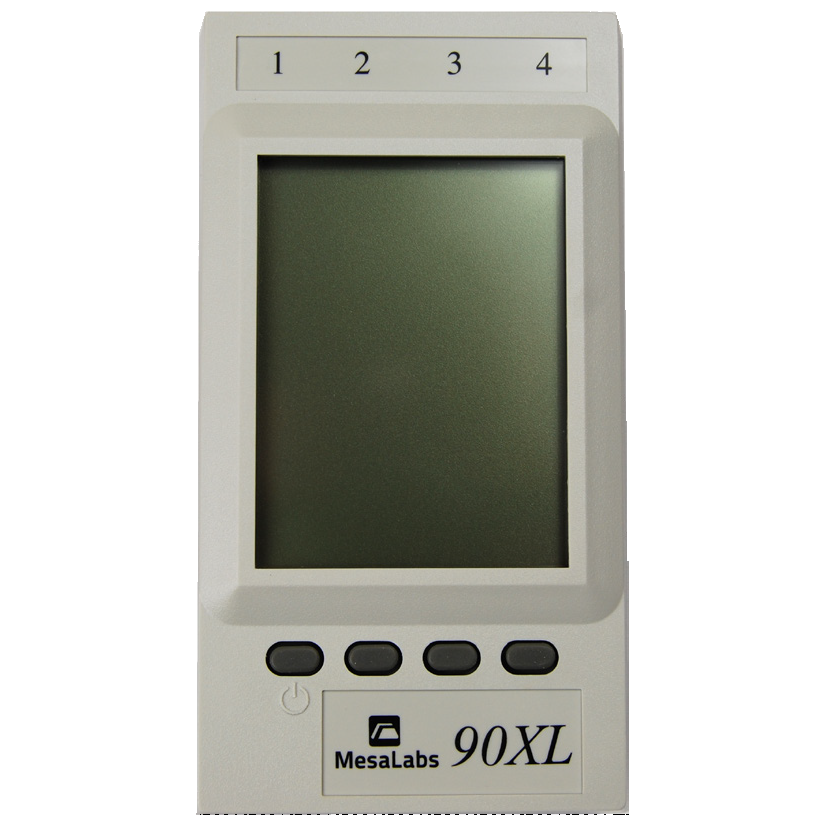

90XL Technician Meter (Mesa)
90XL Technician Meter (Mesa)

The 90XL is a portable and multifunction meter designed for maintenance and service of hemodialysis machines. This modular system  measures the conductivity, pH, temperature and pressure of the dialysate fluids from hemodialysis delivery systems and of the water used in hemodialysis clinics.

Dimensions (WxDxH): 3.3” x 6” x 1.5”
Weight: 9.9 oz

Unit FeaturesCaractéristiques de l'unité
Individual sensor modules measure conductivity/temperature, pH, or pressure.
Large, easy-to-read screen that displays data from up to four sensors simultaneously.
Additional Features

Display module (controller for the system): large display, microprocessor, circuitry, keypad and a rechargeable lithium-ion battery power supply.

Specifications

Temperature range: 10 to 90°C (optimized for 20 to 40˚C)

Battery Power: Rechargeable 3.6 V Lithium-ion battery

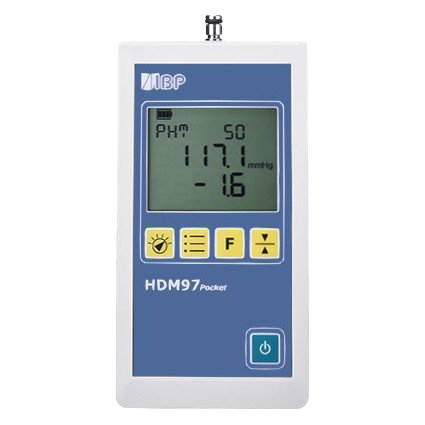

HDM97 Hemo-Dialysis Meter (IBP)
HDM97 Hemo-Dialysis Meter (IBP)

For maintenance and service of hemodialysis machines.

The HDM97 Pocket Reference Meter is designed for maintenance and service of hemodialysis machines. Developed by specialists and integrating the innovation and experience of 30 years in the design of reference meters for dialysis, the HDM97 Pocket Reference meter allows for highly accurate and reliable measurement of conductivity, temperature, pressure, pH and flow. Advanced electronic technology combined with highly developed software results in a completely new type of measuring instrument with special features on a level of accuracy not achievable with other units.

Dimensions (WxDxH): 165 x 82 x 33 mm (6.5” x 3.2” x 1.3”)
Weight: 0.4 Kg (0.88 lbs) including probe

Unit FeaturesCaractéristiques de l'unité
Can be used with any brand of dialysis machine
Measure conductivity, temperature, pressure, and flow with the same device.
Additional Features

Selectable conductivity temperature coefficient for high accuracy conductivity measurement

Allows conductivity measurement of RO water

With special option blood pressure meters can be calibrated

Timer function

Allows for Pressure drop measurement

USB Computer Interface for data acquisition

FDA 510(k) approval

Specifications

Temperature range: 0 to 100°C

Battery Power: Internal Rechargeable Lithium-ion battery

Battery life: 200 hours operation
