DIAGNOMATIC by PRO-PROJECT

Fully automated quality control solution for diagnostic medical equipment.

Testing
Testing
Pro-MAM AEC PMMA
Pro-MAM AEC PMMA

Set of acrylic plates for testing Automated Exposure Control of mammography systems.

Dimensions: 240 x 180 mm (7 x 10 mm thick) and 240 x 300 mm (2 x 5 mm thick)

Unit FeaturesCaractéristiques de l'unité
Complies with: IEC 61223-3-2
CE certified
Additional Features

The manual provides detailed guidelines for carrying out each test, results assessment and registration

Specifications

Made of a transparent PMMA

Other sizes upon request

Optional carrying case

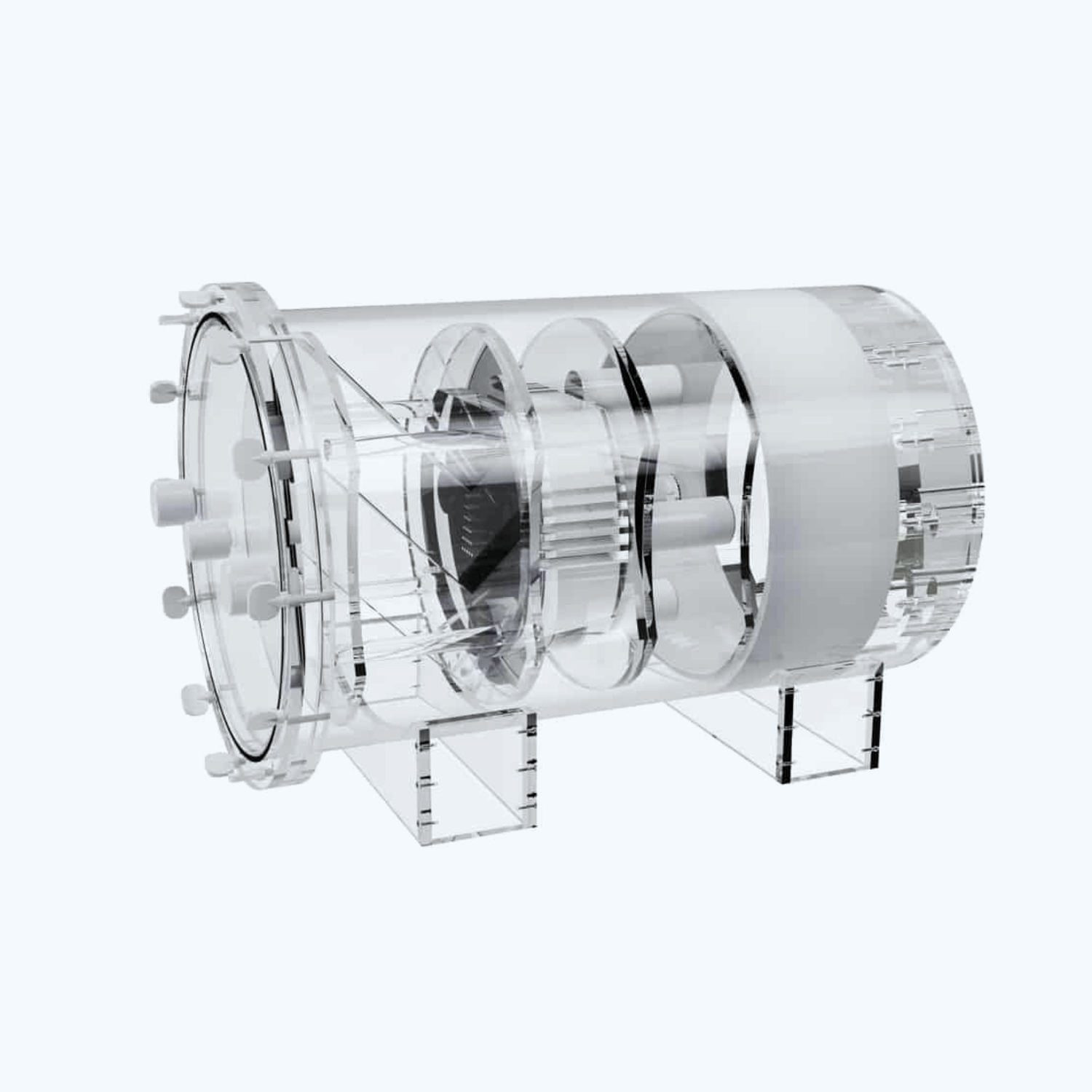

Pro-CT MK II
Pro-CT MK II

The Pro-CT mk II phantom can be used for carrying out acceptance and constancy tests of computed tomography systems according to IEC 61223-3-5 and the AAPM (American Association of Physicists in Medicine) guidelines. This phantom consists of several test modules placed inside a cylindrical container that can be mounted either directly on a holder of the CT table or on an adjustable stand. It allows accurate alignment for measurements on and off the table. Markings on the phantom and leveling aids provide further facilitation of the positioning process.

Dimensions: Outside diameter: 220 mm; Length: 250 mm

Unit FeaturesCaractéristiques de l'unité
CE certified
Additional Features

Complies with:
IEC 61223-3-2; IEC 61223-2-6
AAPM guidelines
ACR guidelines
21CFR 1020.33 specifications

The manual provides detailed guidelines for carrying out each test, results assessment and registration

Specifications

Main module contains PMMA section with an array of holes 2 mm in diameter, 10 mm deep, placed at 10 mm intervals

Optional external beam hardening rings:
380 mm outside diameter (04-417)
350 mm outside diameter (04-418)
300 – 380 mm outside oval diameter (04-419)
450 – 550 mm outside oval diameter (04-420)

Positioning stand for on and off table measurements

Carrying case
